WALL MOUNTED SUCTION WITH GAUGE

WALL MOUNTED SUCTION WITH GAUGE Specification

Instruments Type
Suction Apparatus

Usage Type
Continuous

Display Type
Analog gauge

Storage Instructions
Store in a dry, clean place away from direct sunlight

Function
Medical vacuum and fluid collection

Accuracy
2% of full scale

Shelf Life
5 Years (estimated hardware life)

Measurement Range
0-760 mmHg (gauge dependent)

Features
Vacuum gauge, collection jar, overflow protection, easy wall mounting

Equipment Type
Wall Mounted Suction Unit with Gauge

Material
Metal body with polycarbonate collection jar

Condition
New

Technology
Mechanical suction, analog gauge

Portable
No (Wall mounted)

Wall Mounted
Yes

Real-Time Operation
Yes

Noise Level
Low

Operating Type
Manual or pipeline vacuum operated

Use
Medical suction for hospitals, clinics, surgical rooms

Power Source
Central suction system or manual

Dimension (L*W*H)
Approx. 20 x 10 x 20 cm

Weight
Approx. 1.2 kg

Color
White/Blue (as per image)

Vacuum Regulator
Adjustable

Jar Capacity
600 ml (polycarbonate, autoclavable)

Maintenance
Easy to disassemble and clean

Gauge Type
Bourdon type, easy reading

Sterilization
Autoclavable jar and parts

Mounting Accessories
Wall bracket and fixing kit included

Overflow Protection
Mechanical float valve system

Hose Length
Approx. 1.5 meters

Compliance
Conforms to hospital safety standards

About WALL MOUNTED SUCTION WITH GAUGE

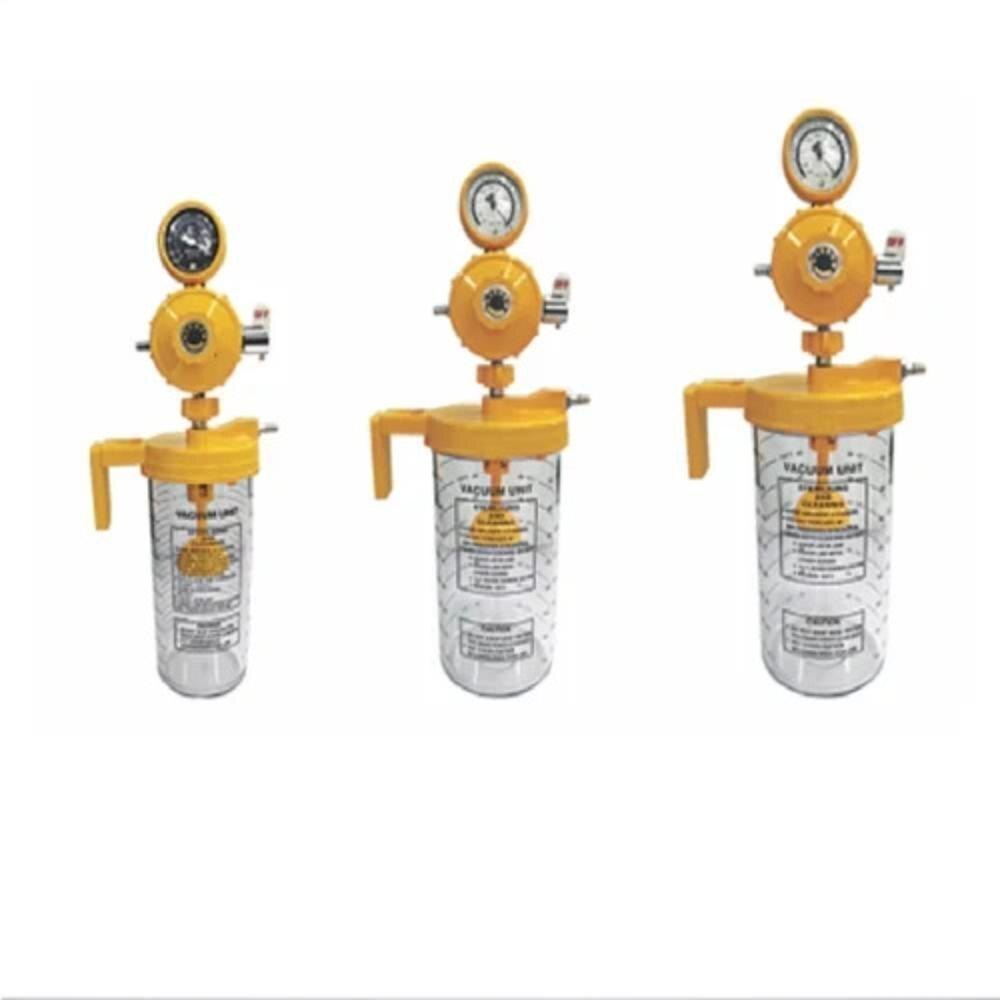

Product Size Product Code

600 ml MSI-1291

1000 ml MSI-1292

2000 ml MSI-1293

Maintains accuracy

High Quality Rubber diaphragm

Inbuilt Safety valve

Usage : Connect with Central O Pipeline 2

Packing : Paper Box

High-Performance Suction for Clinical Settings

Designed for efficient fluid and secretion removal, this wall mounted suction apparatus features a durable metal construction and an autoclavable polycarbonate collection jar. Its mechanical suction and easy-to-read analog gauge provide precise and safe operation suitable for continuous medical use.

Easy Installation and Maintenance

The unit comes complete with a wall bracket and fixing kit for secure installation in hospital environments. Its jar and essential parts are easy to disassemble and autoclavable, simplifying cleaning and sterilization for safe reuse.

Safety Features You Can Trust

An integrated mechanical float valve system protects against jar overflow, while the adjustable vacuum regulator and precise bourdon gauge ensure accurate vacuum settings. The equipment complies with hospital safety standards and is suitable for continuous, real-time operation.

FAQ's of WALL MOUNTED SUCTION WITH GAUGE:

Q: How do I install the Wall Mounted Suction Unit with Gauge?

A: The unit comes with a wall bracket and a complete fixing kit, enabling straightforward installation on any suitable medical facility wall. Follow the included instructions to securely mount the suction apparatus in your preferred location.

Q: What is the process for cleaning and sterilizing the collection jar and parts?

A: The polycarbonate collection jar and essential components are fully autoclavable. To clean, disassemble the parts and sterilize them using an autoclave, ensuring hygienic reuse in medical settings.

Q: When should overflow protection be checked and how does it work?

A: The mechanical float valve system automatically prevents overflow by halting suction if the jar fills to capacity. It should be visually inspected during routine cleaning or before each use to ensure proper function.

Q: Where can this suction apparatus be used?

A: This wall mounted suction unit is intended for use in medical environments such as hospitals, clinics, and surgical rooms where reliable, continuous suction is vital.

Q: What are the primary benefits of the vacuum gauge and adjustable regulator?

A: The easy-to-read bourdon type gauge and adjustable vacuum regulator allow precise vacuum control and monitoring, enhancing procedural safety and effectiveness for healthcare professionals.

Q: How is the suction power operated and what are its noise levels?

A: The apparatus operates via a manual or central pipeline vacuum and is designed for low-noise operation, making it ideal for sensitive clinical environments.
