VENTILATOR CIRCUIT DOUBLE WATER TRAP

VENTILATOR CIRCUIT DOUBLE WATER TRAP Specification

Storage Instructions
Store in a cool, dry, and hygienic environment, away from direct sunlight

Usage Type
Single-use/Disposable

Shelf Life
2-3 Years

Features
Double water trap for enhanced moisture management, kink-resistant tubing, smooth bore, universal connectors, latex-free

Instruments Type
Anaesthesia and Respiratory Equipment

Function
Provides secure and efficient transfer of gases between ventilator and patient, prevents water accumulation

Equipment Type
Ventilator Circuit with Double Water Trap

Material
Medical Grade PVC and Polypropylene

Condition
New

Technology
Disposable, Non-Heated Breathing Circuit

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Operating Type
Manual/Passive (for ventilator connection)

Use
Used to connect patient to ventilator, suitable for respiratory therapy

Power Source
None (for use with mechanical ventilators)

Dimension (L*W*H)
Standard length 1.5 to 1.8 meters

Weight
Approx. 200-250 grams

Color
Transparent/Blue

Bacterial/Viral Filter Compatibility
Yes

Connector Type
22 mm (adult) and 15 mm (pediatric) standard connectors, compatible with most ventilators

Customization
Available for circuit length and connector type as per requirements

Intended Use
Hospital, ICU, Transport Ventilation, Emergency Use

Water Trap Material
Polycarbonate for durability and transparency

Compliance Standard
Conforms to ISO 5367/BS EN 13544-2

Tubing Diameter
22 mm (adult), 15 mm (pediatric)

Circuit Type
Adult or Pediatric options available

Corrugation Type
Smooth bore inner surface to reduce resistance and maximize flow

Packaging
Individually packed in sterile pouch

Sterility
ETO Sterilized

Latex Content
Latex-free

About VENTILATOR CIRCUIT DOUBLE WATER TRAP

Product Size Product Code

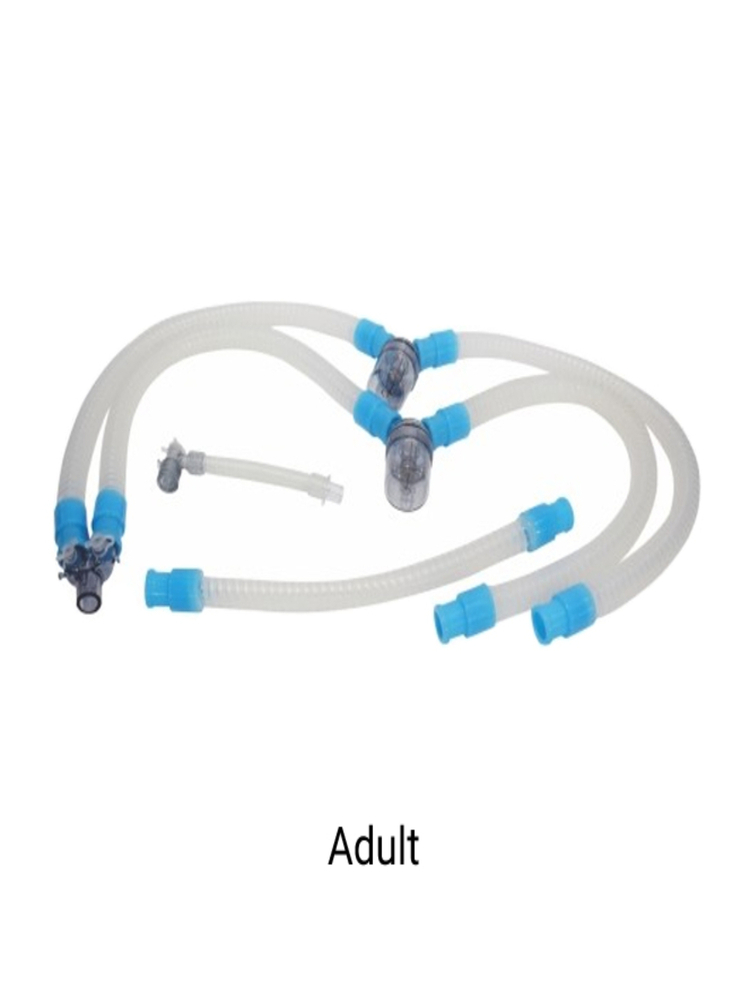

Adult MSI-1089

Pediatric MSI-1090

Neonatal MSI-1091

Dual Limb circuit with Y Connector

Autoclavable at134 C0

Reusable & Latex Free

Packing : Poly Bag

Optional : Catheter MounT

Superior Moisture Management

Equipped with double water traps made from durable polycarbonate, this ventilator circuit ensures efficient moisture collection and reduces condensation within the tubing. The transparent traps allow for quick visual inspection, minimizing the risk of water entering the patient's airway and enhancing infection control in critical care environments.

Universal Compatibility and Safety

Designed with standard 22 mm (adult) and 15 mm (pediatric) connectors, this circuit is suitable for use with most mechanical ventilators. It complies with ISO and BS EN safety standards, is ETO sterilized, and is entirely latex-free, ensuring high safety standards and minimizing allergic reactions. Smooth bore tubing maximizes flow while preventing resistance for optimal patient care.

Customizable for Diverse Clinical Needs

This ventilator circuit caters to a wide range of hospital, ICU, and emergency applications. It can be customized in length and connector type to meet clinical requirements, making it a versatile choice for healthcare providers. Each set is conveniently packaged individually in a sterile environment, supporting safe and rapid deployment during emergencies or routine care.

FAQ's of VENTILATOR CIRCUIT DOUBLE WATER TRAP:

Q: How does the double water trap design benefit patients and caregivers?

A: The double water trap system efficiently manages and collects moisture within the ventilator circuit, reducing the risk of water entering the patient's airway. This ensures continuous airflow, minimizing infection risks and maintenance for caregivers.

Q: What clinical settings is this ventilator circuit suitable for?

A: This product is designed for use in hospitals, ICUs, emergency rooms, and for transport ventilation. Its portability, durability, and single-use design make it ideal for both routine and emergency respiratory care.

Q: What customization options are available for this ventilator circuit?

A: You can request customization for circuit length and connector type to suit specific patient needs or device compatibility, providing extra flexibility in various clinical environments.

Q: Is the ventilator circuit compatible with all ventilator models?

A: Equipped with standard 22 mm (adult) and 15 mm (pediatric) connectors, the circuit is compatible with most mechanical ventilators, making it a universal solution for different medical facilities.

Q: What is the recommended process for storing this product?

A: Store the ventilator circuit in a cool, dry, and hygienic location away from direct sunlight to preserve sterility and ensure optimal performance during its 2-3 year shelf life.

Q: How is the circuit packaged and sterilized for patient safety?

A: Each circuit is individually packed in a sterile pouch and sterilized using ETO gas, ensuring patient safety, minimizing infection risk, and maintaining product integrity until use.
