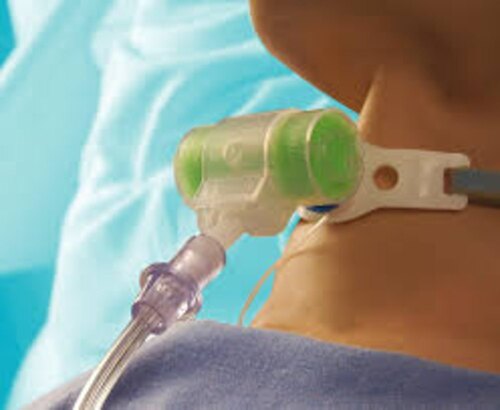

Intersurgical Hydro Trach T (Heat and Moisture Exchanger) Filter

Intersurgical Hydro Trach T (Heat and Moisture Exchanger) Filter Specification

Function
Maintains airway humidity and filters pathogens

Instruments Type
Respiratory accessory

Storage Instructions
Store in a cool, dry place away from direct sunlight

Accuracy
>99.99% filtration efficiency %

Features
High moisture return, viral and bacterial filtration, low resistance, lightweight design

Usage Type
Medical

Shelf Life
Up to 3 years (unopened) Years

Equipment Type
Hydro Trach T HME Filter

Material
Other

Condition
New

Technology
Heat and Moisture Exchange (HME) filtration

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent operation db

Use
Tracheostomy care; airway humidification and filtration

Power Source
None (passive device)

Dimension (L*W*H)
Approx. 63 mm x 50 mm x 36 mm Millimeter (mm)

Weight
Approx. 22 g Grams (g)

Color
Transparent housing with blue cap

Packaging
Individually packed

Compliance
ISO 13485 and CE marked

Moisture Output
28 mg H2O/L

Intended Patient Type
Adult/Pediatric

Sterilization
Sterile, ready to use

Compatibility
Suitable for adult and pediatric tracheostomy tubes

Resistance at 60 L/min
<1.2 cm H2O

Dead Space Volume
Approx. 34 ml

Filtration Efficiency
Bacterial: >99.99%; Viral: >99.99%

Connection
15 mm/15 mm (ISO standard for tracheostomy applications)

Application
Respiratory therapy; clinical/hospital

About Intersurgical Hydro Trach T (Heat and Moisture Exchanger) Filter

Designed for use on tracheostomised patients The Hydro-Trach T is a heat and moisture exchange device designed for use with spontaneously breathing patients in order to reduce loss of heat and moisture during respiration. When a patient has a tracheostomy, the normal system of temperature and moisture maintenance is bypassed by the insertion of the tracheal tube. The possible loss of heat and moisture can lead to serious complications, notably damage to cilia and the mucous glands. This in turn may result in retention of sputum and atelectasis, production of mucous plugs and potential tubal occlusion. The Hydro-Trach T has a number of unique features which make it an ideal product for prolonged use with spontaneously breathing patients.

Reliable and Efficient Filtration

Designed for both adults and children, the Hydro Trach T HME Filter ensures greater than 99.99% bacterial and viral removal, safeguarding patients from airborne pathogens during tracheostomy care. The filter's medical-grade materials and efficient design deliver optimal respiratory therapy outcomes.

Optimal Airway Humidification

Delivering a minimum of 28 mg H2O/L in moisture output, the device actively maintains appropriate airway humidity, supporting patient comfort and reducing respiratory complications. Its hydrophilic media is engineered to maximize moisture return without increasing breathing resistance.

User-Friendly and Versatile

The filter is lightweight, silent in operation, and easily portable-making it suitable for use in various clinical settings. With ISO standard connectors, it fits most adult and pediatric tracheostomy tubes, and its ready-to-use, sterile packaging ensures quick and safe application.

FAQ's of INTERSURGICAL Hydro Trach T HME Filter:

Q: How is the Hydro Trach T HME Filter used in tracheostomy care?

A: The filter connects to the tracheostomy tube via its standard 15 mm/15 mm ISO connectors and functions passively to deliver humidified, filtered air, helping maintain airway moisture and protect against bacteria and viruses.

Q: What makes this filter suitable for both adult and pediatric patients?

A: With its universal ISO standard connection, light weight (22 g), and optimal dead space volume, the Hydro Trach T HME Filter is engineered for effective performance across a range of tracheostomy tubes, accommodating both adult and pediatric needs.

Q: When should the Hydro Trach T HME Filter be replaced?

A: As a single-use, disposable device, it should be changed according to clinical protocol or when visibly soiled or experiencing increased resistance. It is intended for one-time use to ensure sterility and effectiveness.

Q: Where can this filter be used?

A: Ideal for use in hospitals, clinics, and other respiratory care environments, the filter is designed to be portable and easy to deploy in any medical setting where tracheostomy care is necessary.

Q: What are the benefits of using this HME filter for tracheostomy patients?

A: The filter provides high humidity and efficient pathogen filtration, reduces infection risk, maintains airway comfort, and is easy to handle due to its sterile, ready-to-use packaging.

Q: How should the Hydro Trach T HME Filter be stored before use?

A: Store the filter in a cool, dry place away from direct sunlight to maintain its integrity and preserve its three-year shelf life when unopened.

Q: What is the process for installing the Hydro Trach T HME Filter?

A: Remove the filter from its individual packaging, ensure the connection ports are clean, and attach the filter between the tracheostomy tube and any required adjunct devices, ensuring a secure fit before initiating therapy.
