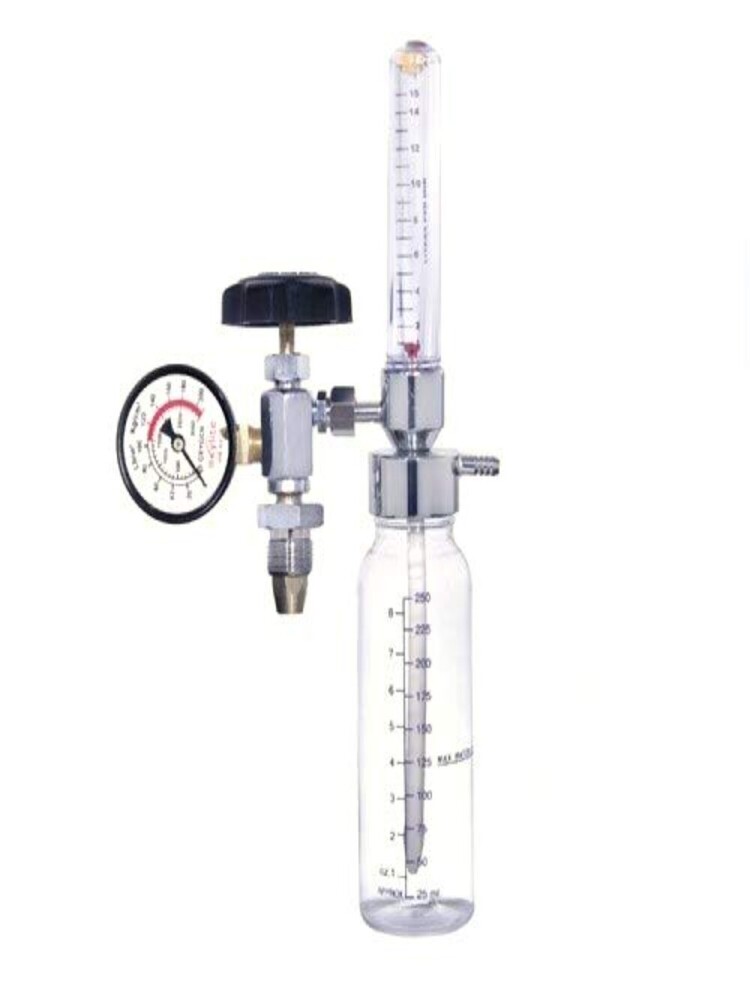

FLOW METER WITH HUMIDIFIER BOTTLE FA

FLOW METER WITH HUMIDIFIER BOTTLE FA Specification

Storage Instructions
Store in a cool, dry place away from direct sunlight

Features
Easy-to-read scale, Precise flow control, Easy bottle refilling and cleaning, Pressure release valve, Compatible with standard medical gas outlets

Shelf Life
5 Years

Function
Regulates and humidifies oxygen flow from central pipeline or cylinder to patient

Accuracy
0.25 L/min

Instruments Type
Medical Gas Flow Instrument

Usage Type
Reusable

Measurement Range
0-15 L/min

Display Type
Analog Scale

Equipment Type
Flow Meter with Humidifier Bottle

Material
Polycarbonate (bottle), Brass/Chrome-plated Brass (body and components)

Condition
New

Technology
Mechanical Flow Meter

Portable
Yes

Wall Mounted
Yes

Real-Time Operation
Yes

Noise Level
Low

Operating Type
Manual

Use
Medical Oxygen Delivery

Power Source
Not Required (Non-electric)

Dimension (L*W*H)
Approximately 25 x 5 x 8 cm

Weight
Approximately 350 g

Color
Transparent (bottle), Silver (body), Green/White (cap and valve)

Flow Adjustment
Precision Valve Control

Bottle Capacity
200 ml

Maximum Pressure Resistance
4 bar

Operating Temperature Range
10C to 40C

Humidification Type
Bubble Humidification

Application
Hospitals, Clinics, Emergency & Homecare Medical Settings

Outlet Fitting
Barbed Nozzle for Oxygen Tubing Connection

Maintenance
Autoclavable bottle, Replaceable parts

Connection Type
Standard 9/16" BSP

About FLOW METER WITH HUMIDIFIER BOTTLE FA

Product Size Product Code

Standard MSI-1286

Fine Adjustment (FA) Valve

Flowmeter Body: Unbreakable Poly Carbonate

Range: 0-10 Min. & 15 Max

Pressure gauge Capacity : 0-250 Kg/Cm2

Flowmeter Capacity: 0-10 Ltr/Min

Usage : Connect with Oxygen Cylinder

Packing : Paper Box

Reliable Oxygen Humidification

Utilizing bubble humidification, this flow meter ensures that oxygen delivered to patients is moistened, preventing airway dryness. The easy-to-read analog scale and precision valve control allow caregivers to set exact flow rates from 0 to 15 L/min, supporting diverse medical needs. The transparent bottle design helps monitor water levels at a glance.

Durable and Safe Construction

Crafted with a polycarbonate humidifier bottle and brass or chrome-plated body components, the device stands up to demanding use in clinical and home environments. It resists pressures up to 4 bar, features a pressure release valve for added safety, and all parts in contact with oxygen can be sterilized or replaced for long-term hygienic operation.

User-Friendly Maintenance and Storage

Both the autoclavable bottle and easily replaceable components ensure hassle-free upkeep. The reusable nature and clear scale markings simplify day-to-day operation. For longevity and reliable performance, store the device in a cool, dry place away from sunlight when not in use.

FAQ's of FLOW METER WITH HUMIDIFIER BOTTLE FA:

Q: How does the bubble humidification system in this flow meter benefit patients?

A: The bubble humidification system moistens oxygen by passing it through water, helping prevent dryness and irritation of the patient's airway during oxygen therapy, which enhances patient comfort and compliance, especially in long-term use.

Q: What is the process for cleaning and maintaining the humidifier bottle and flow meter?

A: The polycarbonate humidifier bottle is autoclavable, allowing for thorough sterilization. Components can be easily disassembled for maintenance, and worn parts are replaceable, ensuring high standards of hygiene and extended product lifespan.

Q: Where can this flow meter with humidifier bottle be used effectively?

A: This device is suitable for a wide range of medical settings, including hospitals, clinics, emergency services, and homecare environments where precise humidified oxygen delivery is needed.

Q: What steps are involved in setting up and using the flow meter for oxygen therapy?

A: Attach the device to a standard 9/16" BSP medical gas outlet, fill the bottle with sterile water to the recommended level, connect oxygen tubing using the barbed nozzle, and use the precision valve to adjust the flow rate as indicated on the analog scale.

Q: How does the precision valve control improve oxygen therapy?

A: The precision valve enables fine adjustments of oxygen flow, allowing accurate delivery ranging from 0 to 15 L/min. This level of control ensures that patients receive tailored therapy according to their specific clinical requirements.

Q: What features make this flow meter portable and easy to use in different environments?

A: With its compact size (approximately 25 x 5 x 8 cm), light weight (about 350 g), and non-electric manual operation, this flow meter is easy to install, move, and use in wall-mounted or portable applications across various medical settings.
