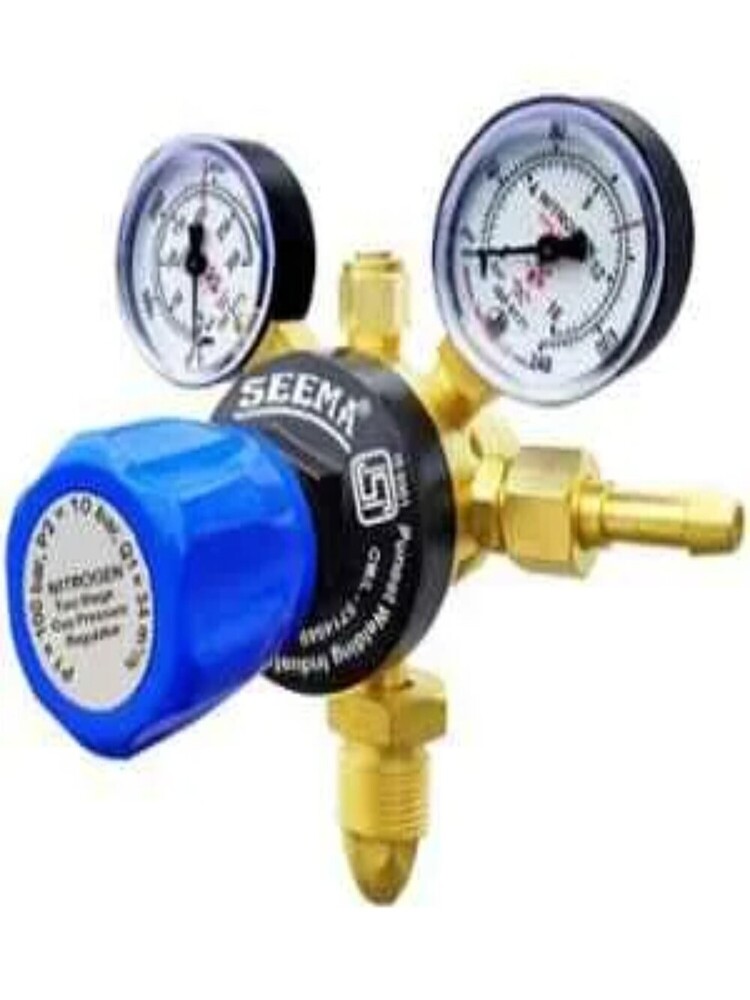

DOUBLE STAGE NITROGEN REGULATOR WITH TUBE

DOUBLE STAGE NITROGEN REGULATOR WITH TUBE Specification

Storage Instructions
Keep in Dry, Non-Corrosive Environment

Usage Type
Industrial, Laboratory

Shelf Life
Indefinite under proper storage

Measurement Range
Input Pressure: up to 300 bar, Output Pressure: 0-10 bar

Accuracy
3% of Full Scale

Display Type
Analog Pressure Gauge

Function
Regulates High-Pressure Nitrogen Gas to Safe Usable Levels

Features
Double Stage Design, Accurate Control, Fitted with Tube, Leak-proof Fittings

Instruments Type
Gas Regulator

Equipment Type
Double Stage Nitrogen Regulator with Tube

Material
Brass Body with Chrome Plating

Condition
New

Technology
Pressure Reduction Double-Stage Mechanism

Portable
Yes

Wall Mounted
No

Real-Time Operation
Yes

Noise Level
Silent Operation

Operating Type
Manual

Use
Gas Pressure Regulation for Nitrogen

Power Source
Not Required (Mechanical)

Dimension (L*W*H)
Approx. 180 x 140 x 110 mm

Weight
1.5 kg (approx.)

Color
Silver with Blue Knob and Valve

Operating Temperature Range
-20C to +60C

Body Coating
Anti-Corrosion Chrome

Max Inlet Pressure
300 bar

Safety Relief Valve
Yes, Integrated

Number of Stages
Double

Hose Material
Flexible, High Pressure-Resistant Rubber Tube

Inlet Connection
G5/8" (Standard for Nitrogen) with Tube

Applications
Welding, HVAC, Food Packaging, Industrial Gas Handling

Pressure Gauge Dual Scale
psi and bar

Outlet Connection
5/8" BSP

Hose Length
1 meter (included)

About DOUBLE STAGE NITROGEN REGULATOR WITH TUBE

Product Size Product Code

Standard M - 1287 MS

Safety Gauge 3500 kg/cm2 for Inlet Pressure

Safety Gauge 200 kg/cm2 for Outlet Pressure

Usage : Connect with Central N Pipeline 2

Packing : Paper Box

Precision Gas Control with Double-Stage Design

This nitrogen regulator employs a double-stage pressure reduction mechanism, ensuring exceptionally stable output even as supply pressure varies. Its dual gauges deliver accurate, real-time monitoring in both psi and bar, making it suitable for critical applications such as industrial gas handling, welding, HVAC, and food packaging.

Durable, Safe, and User-Friendly Construction

Built with a corrosion-resistant, chrome-plated brass body and fitted with a high-pressure, flexible rubber tube, this regulator promises resilience against harsh environments. The integrated safety relief valve, leak-proof connections, and manual operation ensure optimum ease of use and peace of mind.

Versatile Applications and Effortless Maintenance

Designed for a range of industries, this nitrogen regulator is portable and easily installed anywhere reliable nitrogen gas pressure control is needed. With indefinite shelf life under proper storage in a dry, non-corrosive environment, it's a reliable choice for ongoing industrial use.

FAQ's of DOUBLE STAGE NITROGEN REGULATOR WITH TUBE:

Q: How does the double-stage nitrogen regulator maintain accurate pressure control?

A: The double-stage design reduces high-pressure nitrogen gas in two steps, ensuring consistent and highly accurate outlet pressure even when the inlet pressure decreases, offering safer and more reliable gas delivery.

Q: What applications can this nitrogen regulator be used for?

A: This regulator is perfect for welding, HVAC systems, food packaging, laboratory processes, and general industrial gas handling where stable and controlled nitrogen flow is essential.

Q: Where should I install and store the nitrogen regulator for optimal longevity?

A: For maximum equipment lifespan, install the regulator in a dry, non-corrosive environment and always store it in similar conditions when not in use to prevent damage to its anti-corrosion chrome body.

Q: What is the process for attaching the regulator and using the included tube?

A: Simply connect the regulator to the nitrogen cylinder using the standard G5/8" inlet connection. Secure the flexible, high-pressure-resistant rubber tube to the 5/8" BSP outlet, then gradually open the cylinder valve and adjust the blue knob to set your desired output pressure.

Q: What are the benefits of the included integrated safety relief valve?

A: The safety relief valve protects users and equipment by automatically venting excess pressure, preventing potential overpressure-related hazards during operation.

Q: When should I check and maintain the nitrogen regulator?

A: Before each use, inspect the regulator, tube, and fittings for signs of wear or leaks. Regular maintenance ensures optimal performance and safe operation throughout its indefinite shelf life.
